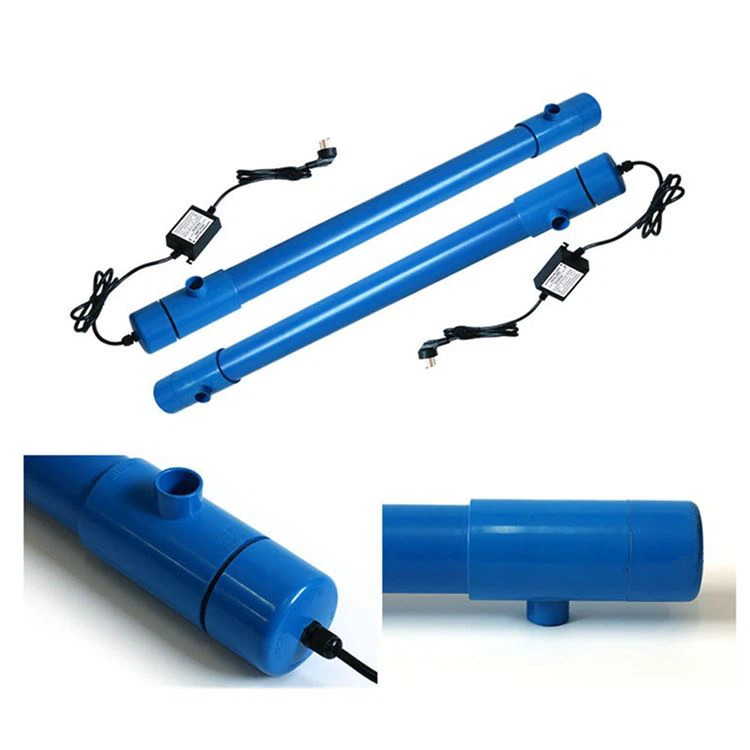

PVC Water Filter UV Lamp Tube for Fish Farming Water Purification

FEATURES

1. Long lifespan

2. Efficient and safe

3. Good reliability and stability

4. Ozone-free

5. Large production capacity

6. EPA, ISO9001, CE certified

SPECIFICATIONS

1. Type: Multitude PVC pipe

2. Peak Wavelength: 254nm

3. Input Voltage: 220vAC

4. Power: 15W-1500W

5. Disinfection volume: 5.5-150m3

6. Water pressure: 0.6MPa

7. Diameter: 1" - 4"

8. Operating Temperature Range: -10 degree - 100 degree

9. Materials: Quartz glass uvc tube, 304/316 stainless steel pipe

10. Lifespan: 10000 hours

ADVANTAGE

This series of products is particularly suitable for seawater / fresh water and other aquaculture, as well as various types of pools, landscape pools swimming pools and other areas of disinfection. The body is made of special engineering plastics, never rust. It can resist all kinds of corrosion, anti ltraviolet UV radiation. When used to allow water to flow through the sterilizen it can significantly improve the water environment, reduce algal blooms in the water, and kill all kinds of diseases caused by parasites, and promote the nealthy growth of aquaculture organisms. Single water treatment capacity anges from {{0}}.2 tons per hour to 100 tons. Full range of products is 0.6MPa oressure. The diameter of the inlet and outlet can be changed according to the customer's needs.

APPLICATIONS

Aquarium disinfection

Water treatment

Water purifier

What is related to the UV bactericidal lamp effect?

Ultraviolet dose = radiant illuminance X irradiation time

Ultraviolet sterilization is determined by two parameters: a bactericidal dose: ultraviolet radiation illuminance (UW / CM2) X irradiation time (S); bacterial type and environmental situation.

Most ultraviolet bactericidal lamps on the market are low-voltage mercury lamp technology. According to the current national standard "GB19258-2012 UV bactericidal lamp" stipulates: This standard is suitable for ozone or no ozone produced by quartz glass, and the ultraviolet radiation peak wavelength is 253.7 nm. From this, we can see that the peak of ultraviolet fibrilic wavelength at low pressure mercury lamp is 253.7 nm, which is currently the most effective ultraviolet sterilization wavelength in the market, which is also the standard sterilization band of internationally popular ultraviolet sterilization lamps. According to the national standard "GB19258-2012 UV bactericidal lamp" to the bactericidal lamp: UV radiation illumination is used as UW / CM2, used to represent the radiation intensity of ultraviolet sterilization lamps. The test distance is required to be 1000mm plus -1mm, that is, the distance between the lamp surface to the surface of the metering instrument. The ultraviolet dose directly affects the bactericidal effect of ultraviolet sterilization lamps, while ultraviolet sterilization is also related to specific bacterial types, temperature, humidity and irradiation time.

In combination, ultraviolet rays of sterilization of each bacteria depends on the sterilization dose, i.e., ultraviolet radiation illuminance (UW / CM²) X irradiation time (S). Typically, if the illumination time is doubled, the same bactericidal effect can be obtained even if the ultraviolet light illuminance is reduced. The sterilization effect is affected by irradiation time, distance and ultraviolet sterilization lamp(PVC water filter germicidal UV lamp tube for fish farming water purification), and the larger the irradiation of the irradiation, the better the radiation, the better the radiation, the better.
