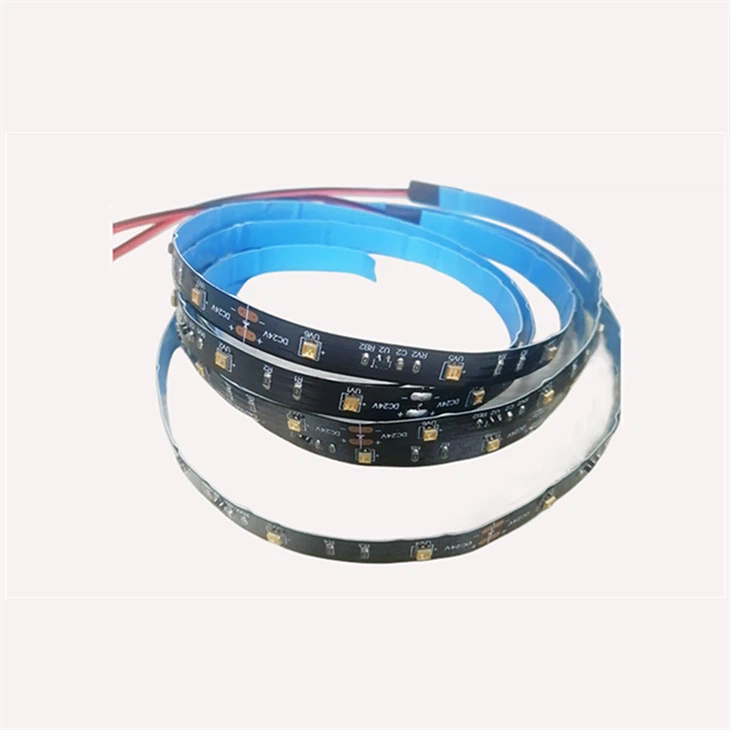

Germicidal UVC Led Sawb 254nm 265nm 275nm

UV teeb feem ntau muab faib ua UVA(315nm-400nm), UVB(280nm-315}nm), UVC(200nm-280}nm) raws li lub wavelength. Nrog luv wavelength thiab lub zog siab, UVC band yeej ib txwm siv rau kev ua kom tsis muaj menyuam thiab tua kab mob. Cov tsoos UV teeb qhov chaw yog cov mercury germicidal teeb. UVC LEDs yog ib hom tshiab ntawm ultraviolet lub teeb qhov chaw. Nws muaj ntau yam zoo dua cov tsoos mercury teeb.



UVC LEDs siv cov chips semiconductor los tawm UVC lub teeb, nws yog ib lub wavelength, thiab nrog cov yam ntxwv ntawm kev ua haujlwm siab photoelectric, kev tiv thaiv ib puag ncig, kev nyab xeeb thiab kev sib koom ua ke yooj yim.



UVC Leds tuaj yeem ua rau ntau yam hloov tau yooj yim thiab nruj lub teeb strips lossis lwm yam khoom siv UVC Leds, thiab tom qab ntawd lawv tau koom ua ke hauv ntau yam khoom siv tsis muaj menyuam los hloov qhov chaw ntawm mercury UV teeb.



Peb yog cov kws tshaj lij UVC LED cov chaw tsim khoom, peb tuaj yeem muab ntau yam tshwj xeeb ntawm UVC teeb hlaws, lub zog sib txawv, qhov loj me, waveband, thiab lwm yam.. sib txawv UVC Leds ceev, sib txawv hluav taws xob degree.



Raws li lub Hoobkas nrog ntau xyoo ntawm kev tsim khoom, los ntawm cov txheej txheem kev tswj hwm nruj, UVC Leds cov khoom peb muab nrog cov khoom zoo, kev ua haujlwm siab, thiab kev pabcuam zoo tom qab muag. Tsis tsuas yog peb tuaj yeem muab cov neeg siv khoom UVC LED lub teeb strips ntawm ntau qhov tshwj xeeb, thiab tseem muaj cov khoom lag luam customized accroding rau cov neeg siv khoom xav tau txais tos. UVC Led teeb peb muab muaj ntau yam zoo xws li kev ruaj ntseg, kev nyab xeeb, kev ntseeg siab, kev txawj ntse, kev sib koom ua ke yooj yim thiab lwm yam.



Nta

1. Ib qho wavelength, tsis muaj suab nrov wavelength, efficiency ntau dua

2. Tam sim no tig rau / tawm, tsis tas yuav preheat, tag nrho UV hluav taws xob tso tawm sai li sai tau thaum qhib

3. Tsis muaj mercury, tsis muaj ozone, ib puag ncig tus phooj ywg

4. Lub neej ntev, lub neej ntev tuaj yeem ncav cuag 20000 teev, thiab qhov hloov zaus tsis cuam tshuam rau lub neej ua haujlwm.

5. Tsawg ua haujlwm voltage, muaj kev nyab xeeb thiab yooj yim

6. Me me, yooj yim rau nruab, tuaj yeem ua rau ntau yam khoom siv

7. ruaj khov UV lub teeb tso zis, cov nyhuv irradiation, muaj kev ntseeg siab

8. Tsawg tus nqi tu



Tsis muaj

Khoom npe	UVC LED Sawb
Hom	Flexible Sawb, Rigid Sawb
Lub wavelength	255nm, 265nm, 275nm
Input voltage	12VDC / 24VDC
Kev siv fais fab	10w/m - 60w/m
LED Quantity	30LED / m, 60leds / m
Txiav Unit	3leds / 10cm, 3leds / 5cm
Ntim Loj	5 meter ib yob
PCB dav	10mm / 20mm
PCB Xim	Dawb/Dub
Led Loj	SMD3535, SMD3838, SMD6868
Optical Power Per Chip	5 - 25mw
Led View Angle	30/60/120 degree
Kev ua neej nyob	10000 teev
Ua haujlwm kub	-30 - 80 degree
Daim ntawv pov thawj	CE, RoHS, FCC



UVC Led Chip Spectrum Curve 255nm / 265nm / 275nm

UVC Led Chip Ntim Loj SMD3535 / SMD6565

UVC Led Chip Saib lub kaum sab xis 30/60/120 degree



Daim ntawv thov

UV teeb feem ntau muab faib ua UVA(315nm-400nm), UVB(280nm-315}nm), UVC(200nm-280}nm) raws li lub wavelength. Nrog luv wavelength thiab lub zog siab, UVC band tuaj yeem rhuav tshem cov qauv molecular ntawm cov hlwb ntawm lub cev microbial (cov kab mob, kab mob thiab lwm yam kab mob) hauv lub sijhawm luv luv. Txhawm rau tiv thaiv kev tsim tawm ntawm microbial DNA thiab RNA los ntawm kev rhuav tshem lawv, cov kab mob microbial tsis tuaj yeem rov tsim dua tshiab, kom ua tiav cov txiaj ntsig zoo thiab nrawm nrawm kom tsis muaj menyuam. UVC lub teeb feem ntau yog siv los ua kom tsis muaj cua, dej thiab qhov chaw ntawm cov khoom. Nrog rau UVC irradiation siv ntawm 30mW / cm2, 99.99 feem pua ​​​​ntawm cov kab mob thiab cov kab mob yuav raug tua nyob rau hauv ib ob, cov nyhuv sterilizing ntawm UVC lub teeb yog qhov tseem ceeb heev. Sib sib zog nqus ultraviolet LED nrog qhov zoo ntawm kev nyab xeeb, kev tiv thaiv ib puag ncig, me me, kev ua haujlwm siab thiab kev siv tsawg, tau maj mam lees paub los ntawm kev ua lag luam, thiab tau siv tam sim hauv huab cua kom tsis muaj menyuam, kev kho dej, tshuaj tua kab mob, kev txuag zaub mov, kev noj qab haus huv thiab ntau yam. lwm teb.

1. Deg tshuaj tua kab mob

2. Kev kho dej

3. Cua sterilization

4. Kev nyab xeeb zaub mov

5. Kev kho mob

6. Kev Tshawb Fawb Txog Kev Ua Neej

7. Cov cuab yeej tsom xam



Qhov txawv ntawm UVC LED thiab cov teeb pom kev zoo Mercury?

Cov tshuaj tua kab mob ib txwm siv yog lub teeb mercury, mercury yog tshuaj lom heev, thaum lub teeb tawg, cov mercury leaked yuav ua rau muaj kev phom sij loj heev rau tib neeg lub cev thiab ib puag ncig. Kev sib sib zog nqus ultraviolet UVC LED siv cov chips semiconductor los tawm lub teeb, tsis muaj cov tshuaj lom, nws yog ib puag ncig zoo. UVC LED tshuaj tua kab mob yog ib txoj kev ua kom tsis muaj menyuam tshiab uas tuaj yeem hloov cov roj mercury UV teeb.



Qhov txawv ntawm UVC LED thiab mercury UV teeb yog raws li nram no:

1. Lub teeb ci txawv: UVC LED emits UVC lub teeb los ntawm LED teeb hlaws, thiab cov tsoos mercury teeb emits UVC teeb los ntawm lub teeb mercury.

2. Lub emission ultraviolet spectrum yog txawv: UVC LED feem ntau emits ib lub ncov wavelength (ntau lub ncov LED ua ke, lub spectrum yog ntau lub ncov), mercury ultraviolet teeb emits nruam wavelength spectrum, lub wavelength range feem ntau loj heev.

3. Kev tiv thaiv ib puag ncig: Lub teeb mercury muaj cov khoom tsis zoo xws li mercury, thiab cov hluav taws xob qis ultraviolet ntawm mercury teeb yuav tsim ozone, uas ua rau nws tsim nyog rau nruab qhov cua tso pa thaum siv mercury UV teeb. Thiab lub teeb ultraviolet qis ntawm mercury teeb muaj hluav taws xob zoo rau tib neeg, yog li nws yuav tsum tau kaw kom tiav thiab tiv thaiv. LED tsis muaj suab nrov wavelength, tsis muaj tshuaj lom neeg, thiab tsis muaj kev puas tsuaj rau tib neeg lub cev.

4. Lifespan: UVC LED yog lub teeb txias txias, nws lub neej muaj peev xwm ncav cuag 20000 teev, lub neej ntawm cov roj mercury teeb yog li 5000 teev. Piv nrog rau cov teeb mercury, UVC LEDs kav ntev dua.

5. Qhov loj ntawm chav tsev sib txawv: Lub teeb mercury teeb lub raj yog loj, thiab lub teeb lub raj iav yog qhov tsis yooj yim, nws yog ib qho nyuaj rau kev sib xyaw ua ke hauv cov khoom siv me me, thaum lub teeb sib sib zog nqus ultraviolet LED muaj cov qauv yooj yim, tsis muaj lub plhaub iav fragile, portable. thiab cuam tshuam tsis kam, thiab nws yooj yim rau kev koom ua ke hauv ntau yam khoom siv.

6. Qhov ua haujlwm voltage yog txawv: qhov ua haujlwm voltage ntawm mercury teeb yog siab, thiab yuav tsum tau preheat. Lub zog ua haujlwm ntawm UVC LEDs tsuas yog ob peb lub volts, tsis muaj kev tsav tsheb nyuaj, yooj yim siv thiab tswj tau yooj yim.



UVC Leds tau hloov cov teeb pom kev zoo nyob rau hauv ntau thiab ntau qhov kev tshem tawm, thiab nws tau siv dav hauv cov cuab yeej siv tshuaj tua kab mob hauv tsev, xws li cua purifiers, dej purifiers, tshuab ntxhua khaub ncaws, ntxhua khaub ncaws thiab lwm yam. Txawm li cas los xij, qhov kev hloov pauv hluav taws xob hluav taws xob ntawm UVC LEDs yog qhov tsawg heev, tsuas yog kwv yees li 3-5 feem pua ​​​​ntawm hluav taws xob hluav taws xob hloov mus rau hauv UVC lub teeb thaum UVC Leds ua haujlwm, thiab qhov seem 95 feem pua ​​​​yog hloov mus rau hauv tshav kub. Qhov no ua rau cov hluav taws xob tsis zoo ntawm qhov sib sib zog nqus UV leds, uas tsuas yog 10 feem pua ​​​​ntawm cov teeb hluav taws xob qis mercury. Thiab tus nqi ntawm UVC Leds ntawm tib lub zog hluav taws xob yog siab, nws yog li ntawm 10 npaug ntawm cov teeb hluav taws xob qis. Yog li kom tau txais tib lub zog hluav taws xob UVC, tus nqi sib sib zog nqus ultraviolet LED yog kwv yees li 100 npaug ntawm cov teeb hluav taws xob qis qis.



Hauv kev xaus, UVC Leds muaj ntau qhov zoo dua li cov teeb mercury ib txwm muaj, Nws yog lub neej yav tom ntej uas UVC Leds los hloov mercury germicidal teeb. Txawm li cas los xij, qhov kev siv hluav taws xob me me, kev siv hluav taws xob tsawg thiab cov nqi tsev siab yog tam sim no lub ntsiab tseem ceeb uas cuam tshuam qhov hloov ntawm UVC Leds rau mercury teeb.



Tuam txhab Profile

Zhengzhou Uvwave Electronic Technology Co., Ltd. yog nyob rau hauv Zhengzhou City, nyob rau hauv nruab nrab ntawm Tuam Tshoj. Peb tau tshwj xeeb hauv kev tsim cov khoom sib txawv ntawm UV teeb, peb muaj kev ywj pheej ntawm kev txawj ntse txoj cai hauv cov thev naus laus zis tseem ceeb ntawm kev sib sib zog nqus ultraviolet LED, tsom rau lub wavelength ntau ntawm 255nm - 410nm. Peb yog ib tug thaum ntxov, loj-scale thiab kuj ua tiav UVC LED ntau lawm enterprise nyob rau hauv Tuam Tshoj.



FAQ

Q1: Kuv puas tuaj yeem muaj qauv dawb los kuaj?

A: Yog, peb txaus siab muab cov qauv los kuaj xyuas qhov zoo, cov qauv sib xyaw ua ke yog muaj, cov qauv dawb kuj tau txais.

Q2: Lub sijhawm ua haujlwm li cas?

A: Qauv xav tau 3-5 hnub, ntau lawm xav tau 1-2 lub lis piam.

Q3: Koj puas muaj MOQ txwv?

A: Tsawg txwv, 1pc rau kev kuaj xyuas yog muaj.

Q4: Koj puas yog chaw tsim khoom lossis tuam txhab lag luam?

A: Peb lub tuam txhab yog cov kws tshaj lij UV Led cov khoom tsim khoom, peb muaj peb lub Hoobkas.

Q5: OEM kev pabcuam tau txais?

A: Yog lawm, peb tuaj yeem muab kev pabcuam OEM raws li koj xav tau.

Q6: Yuav ua li cas koj xa cov khoom thiab yuav siv sij hawm ntev npaum li cas los txog?

A: Peb feem ntau xa los ntawm DHL, UPS, FedEx lossis TNT. Feem ntau nws yuav siv sijhawm 5-7 hnub los txog. Airline thiab hiav txwv shipping yog ob qho tib si xaiv tau.

q7 ua. Puas yog nws zoo los luam kuv lub logo ntawm cov khoom siv coj teeb?

A: Yog, thov qhia rau peb paub ua ntej peb tsim thiab paub meej tias tus qauv tsim ua ntej raws li peb cov qauv.
